Gigabyte A520M K V2 DDR4 AMD MotherboardHover to zoom · Click to enlarge

Gigabyte

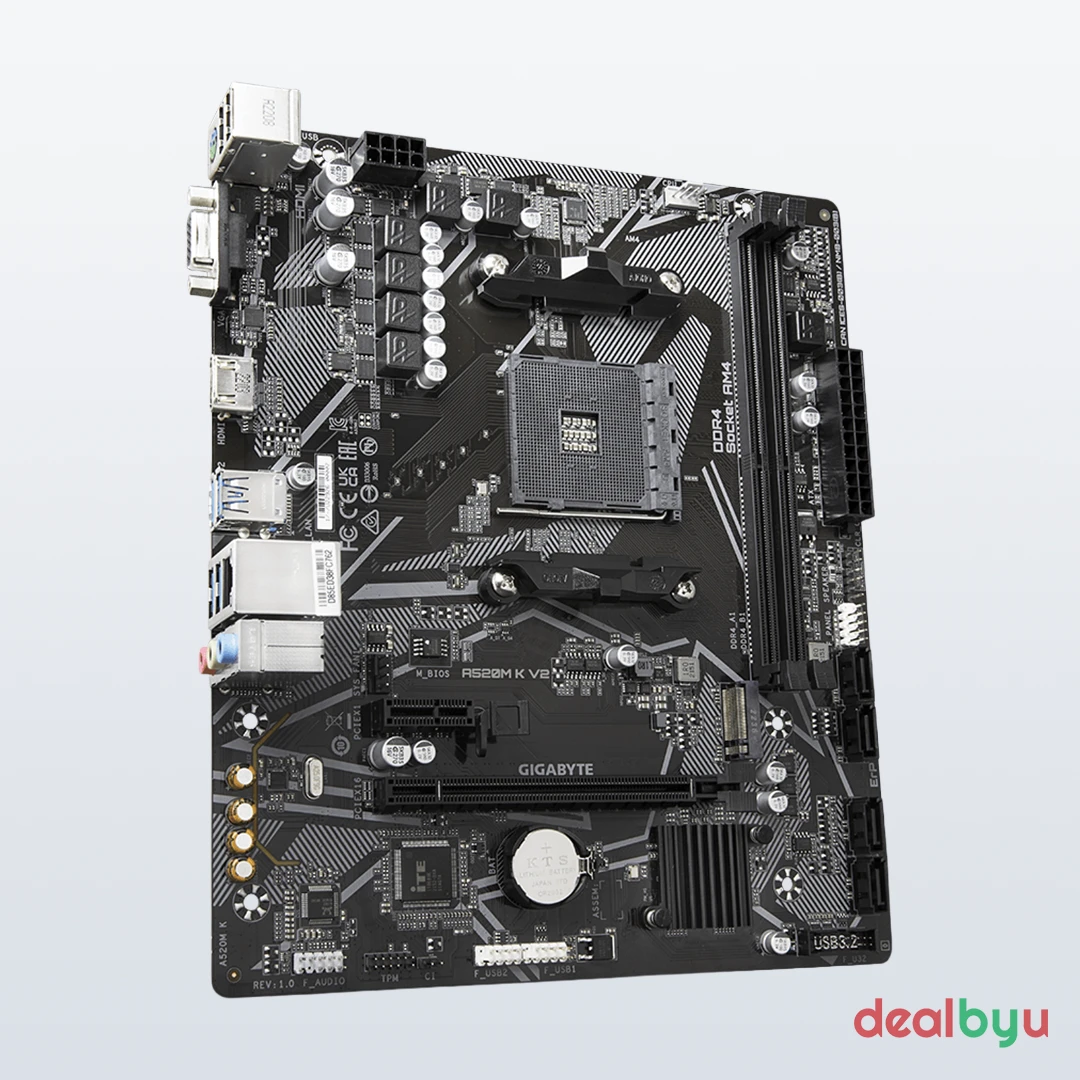

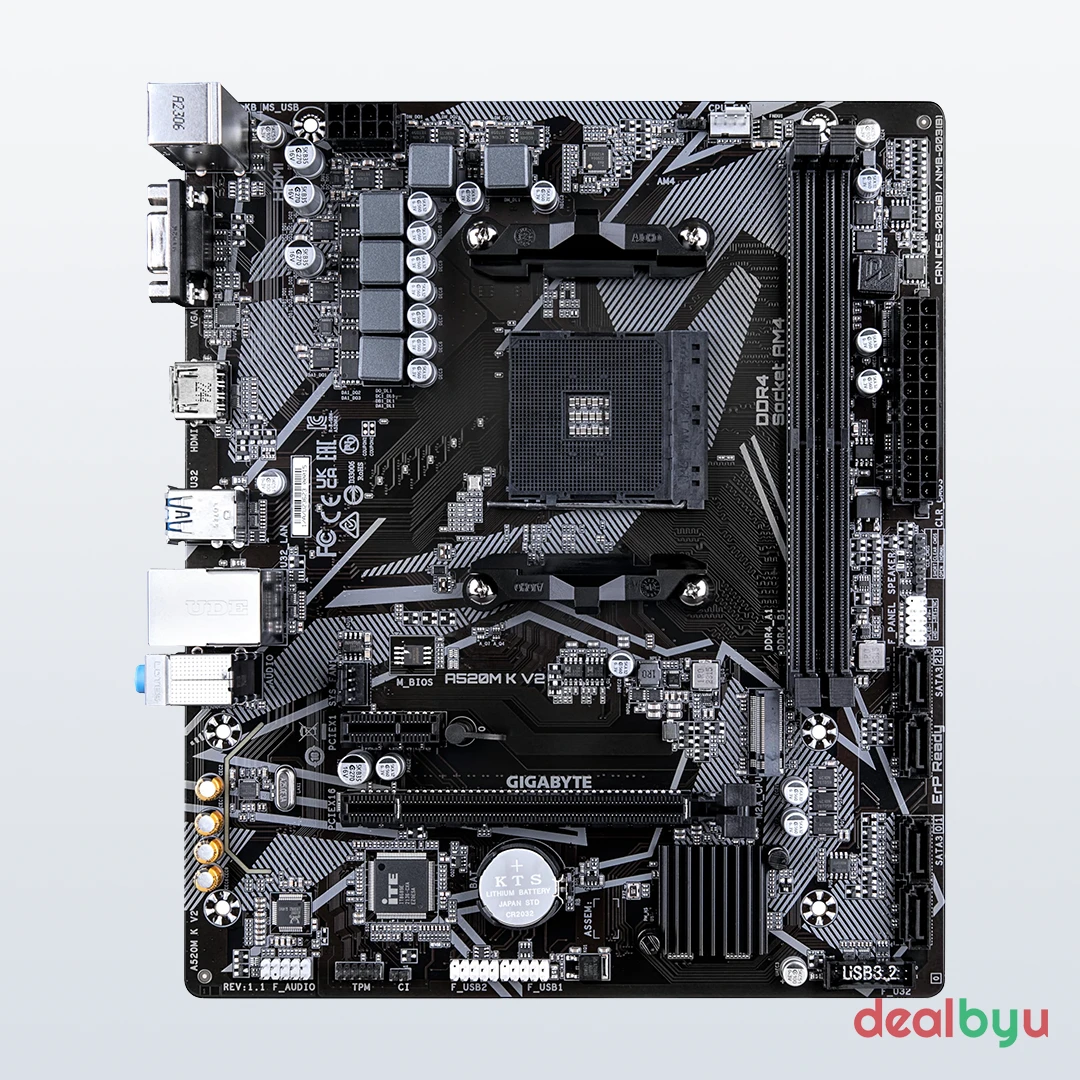

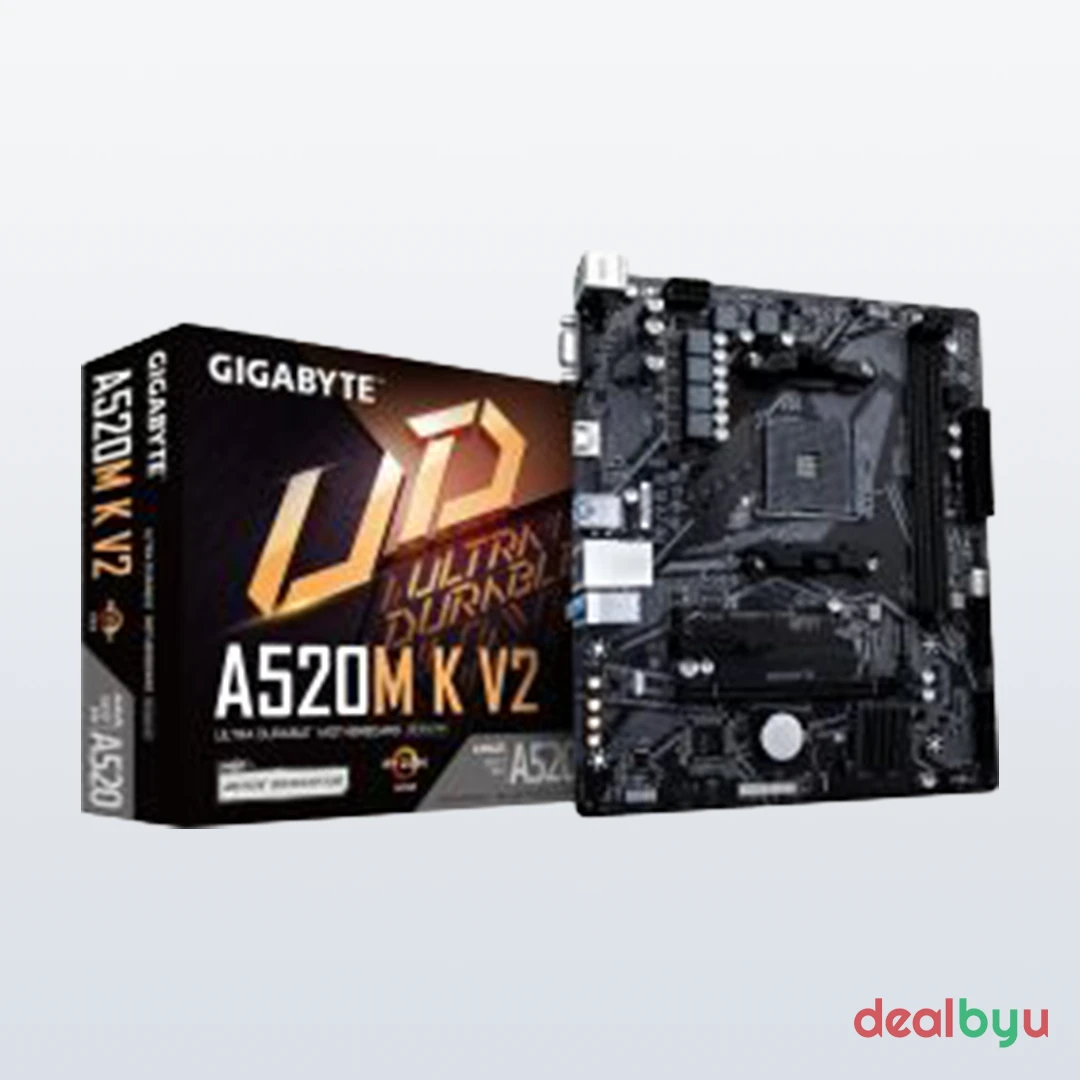

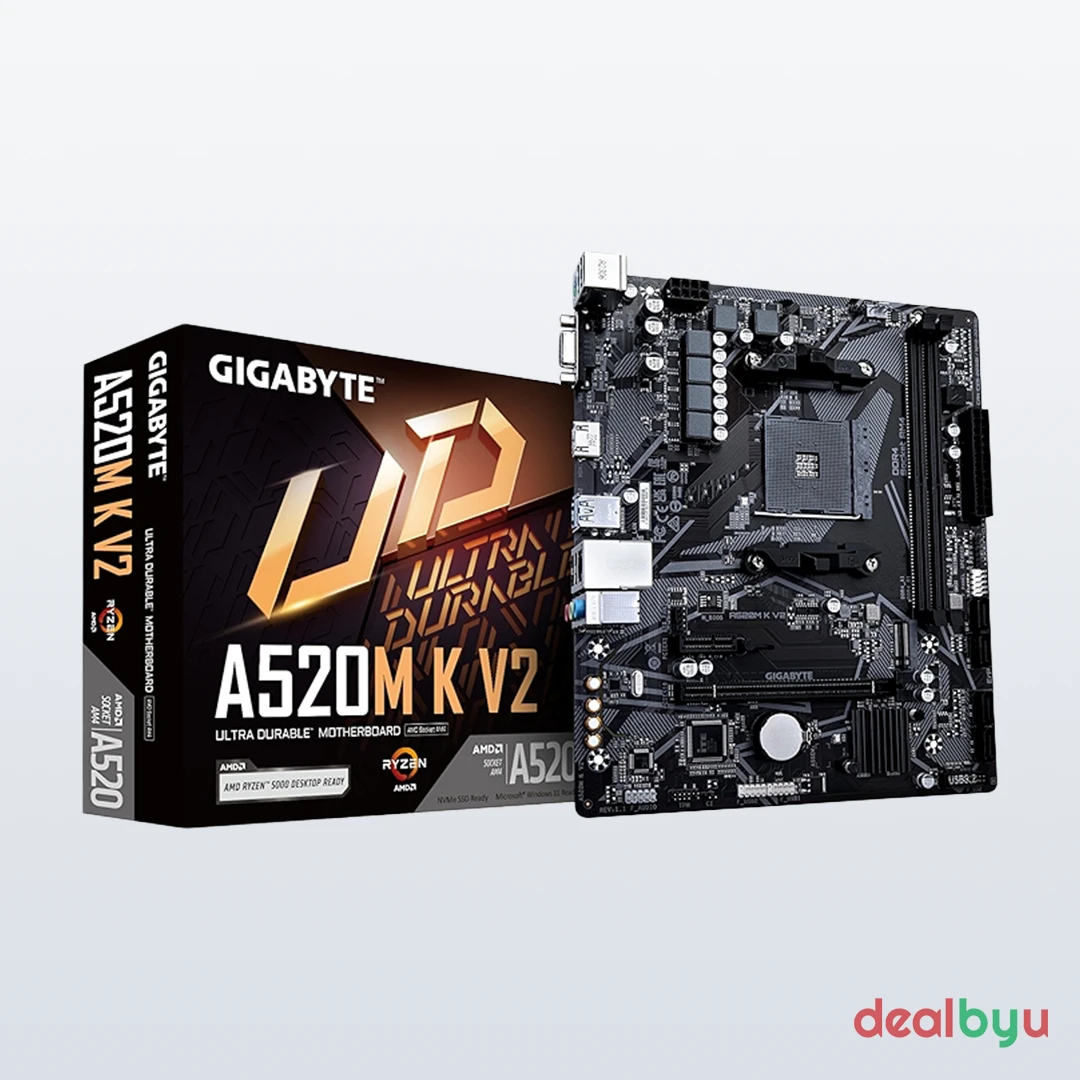

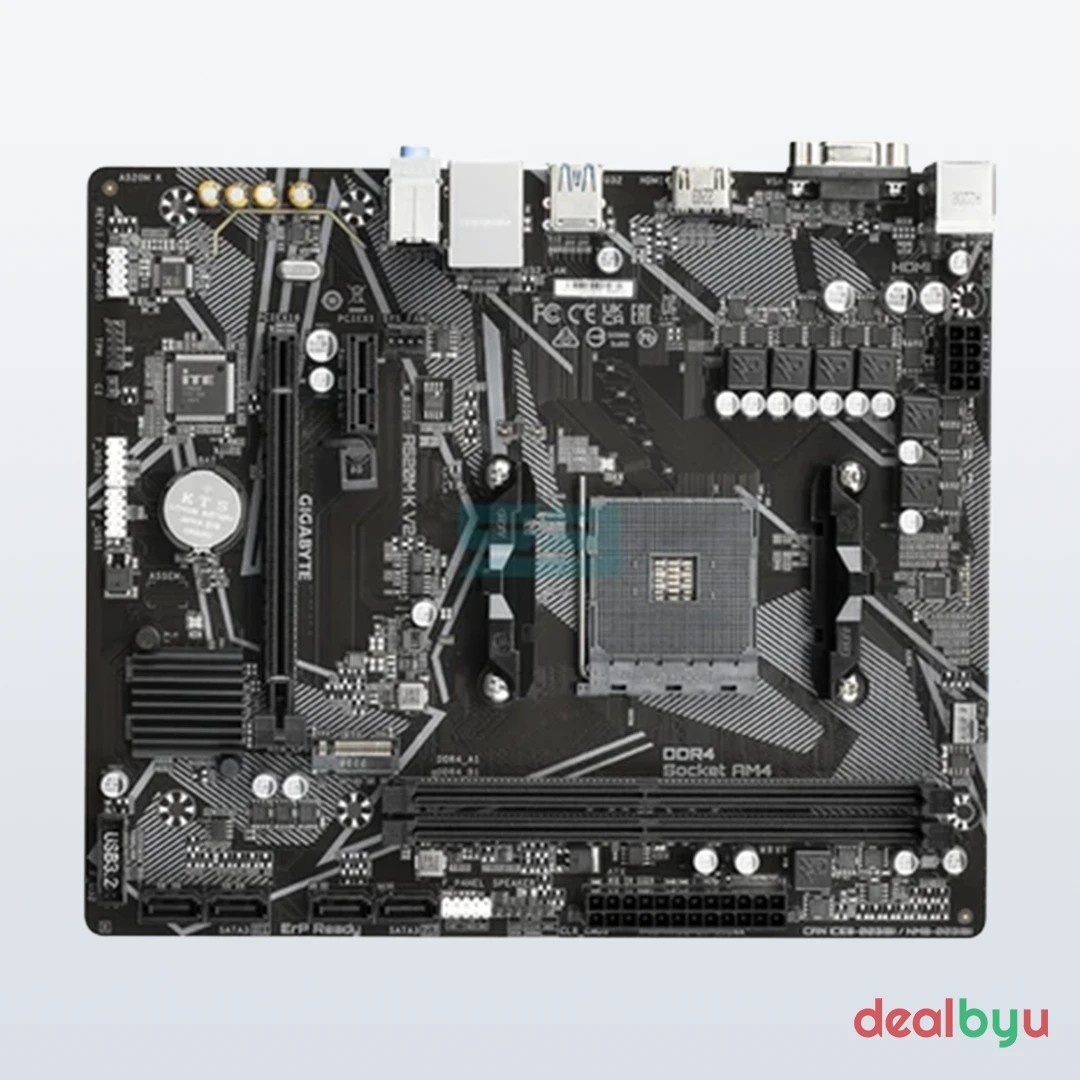

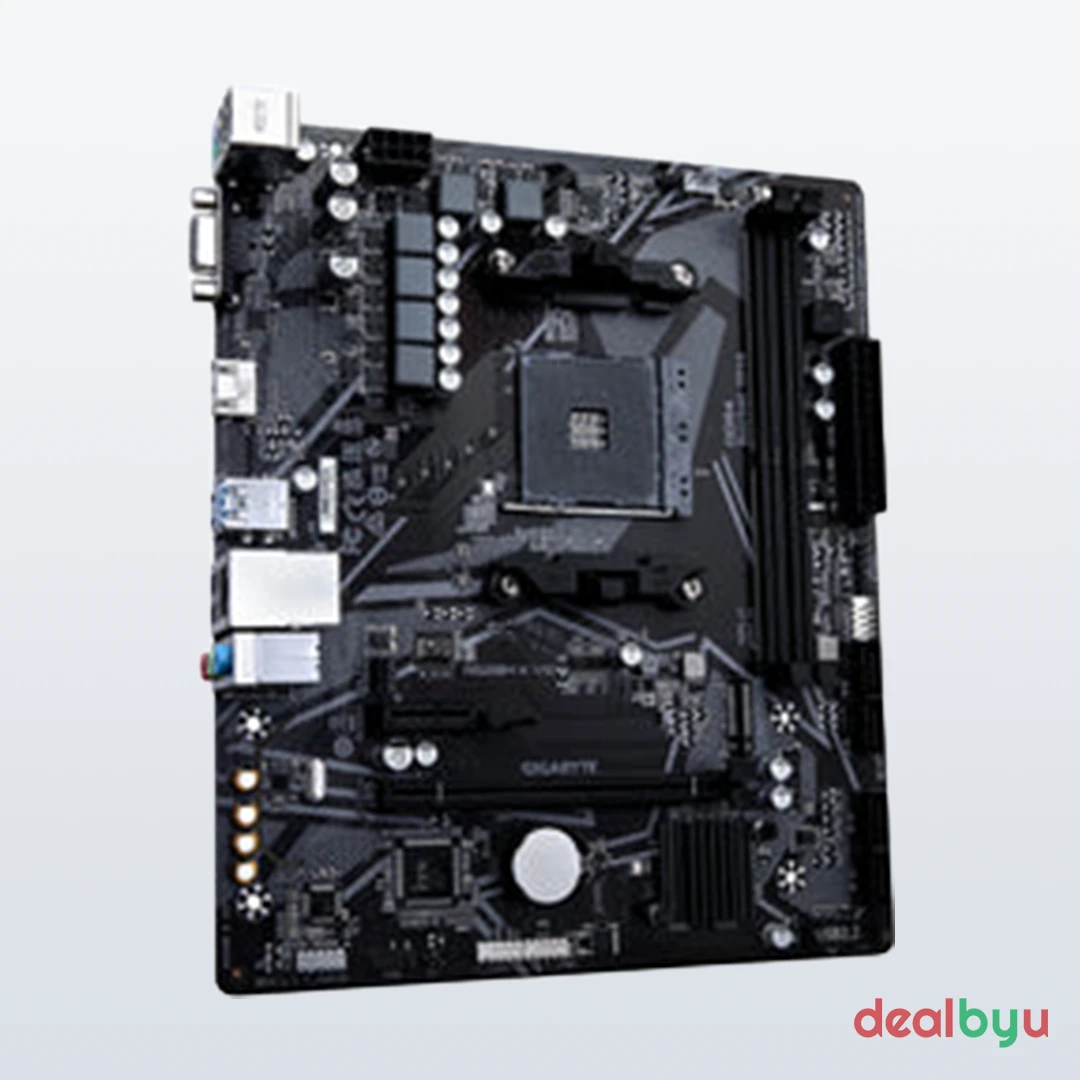

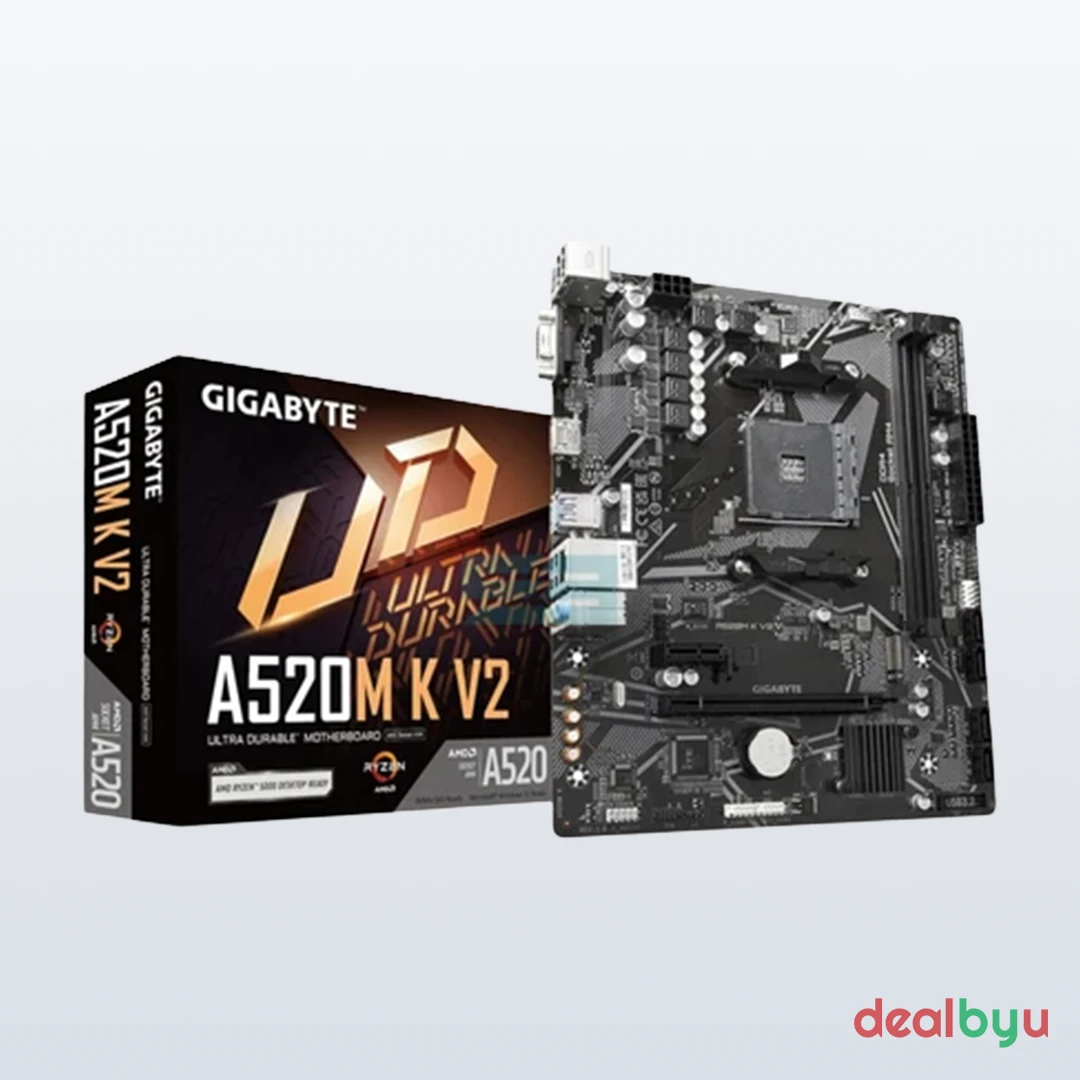

Gigabyte A520M K V2 DDR4 AMD Motherboard

₹5,299₹12,999-59%

You save ₹7,700

Inclusive of 18% GST · Free shipping across India · GST invoice available

Out of stock· 3-Year Limited Manufacturer Warranty handled via… warranty
  • Socket - AMD AM4 for Ryzen 5000/4000/3000 series desktop processors
  • Memory - 2x DDR4 DIMM slots up to 64GB capacity and 3200MHz speed
  • Storage - 1x PCIe Gen3 x4 M.2 slot up to 32Gbps & 4x SATA 6Gb/s ports
  • Video Output - Rear panel HDMI and D-Sub VGA dual monitor support

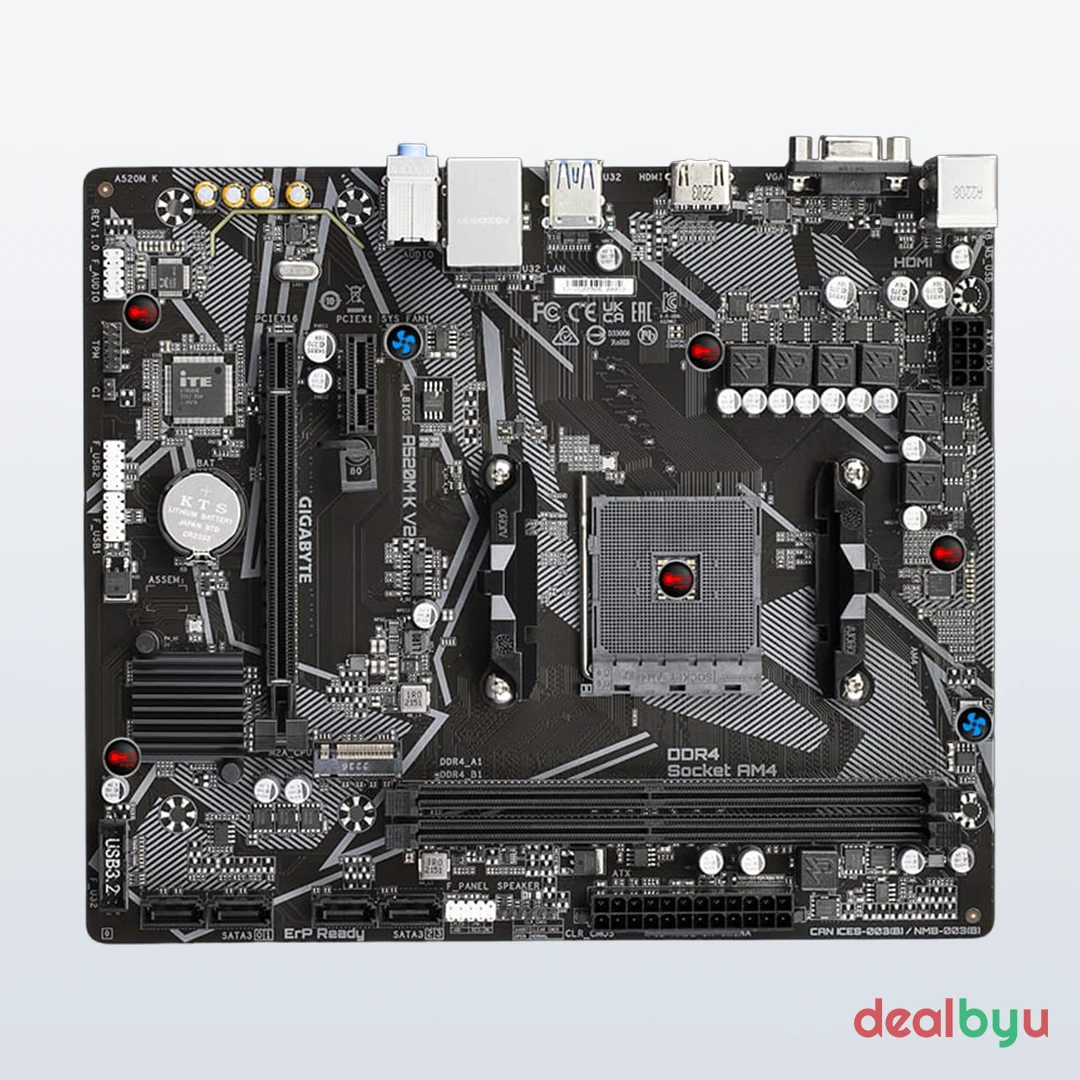

  • Cooling - 5 thermal sensors & 2 hybrid PWM/DC case fan headers
Ships
1–3 days pan-India
Warranty
3-Year Limited Manufacturer Warranty handled via…
Invoice
GST · B2B ready

Features/Specs

Socket/Chipset
AMD AM4; AMD A520 Chipset.
CPU Support
AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors
Storage Interfaces
1 x NVMe PCIe Gen3 x4 M.2 slot (Type 2280) and 4 x SATA 6Gb/s connectors supporting RAID 0, RAID 1, and RAID 10
Audio
Channel HD Audio with High-End Audio Capacitors and an isolated Audio Noise Guard.
Networking
1 x Realtek Gigabit LAN chip equipped with an automated network bandwidth management application.

Memory Support & Capacity

Memory Type
Dual-Channel Non-ECC Unbuffered DDR4
DIMM Slots
2 slots
Maximum Capacity
Up to 64 GB total system memory
Supported Speeds
Baseline support for 3200 / 2933 / 2667 / 2400 / 2133 MHz

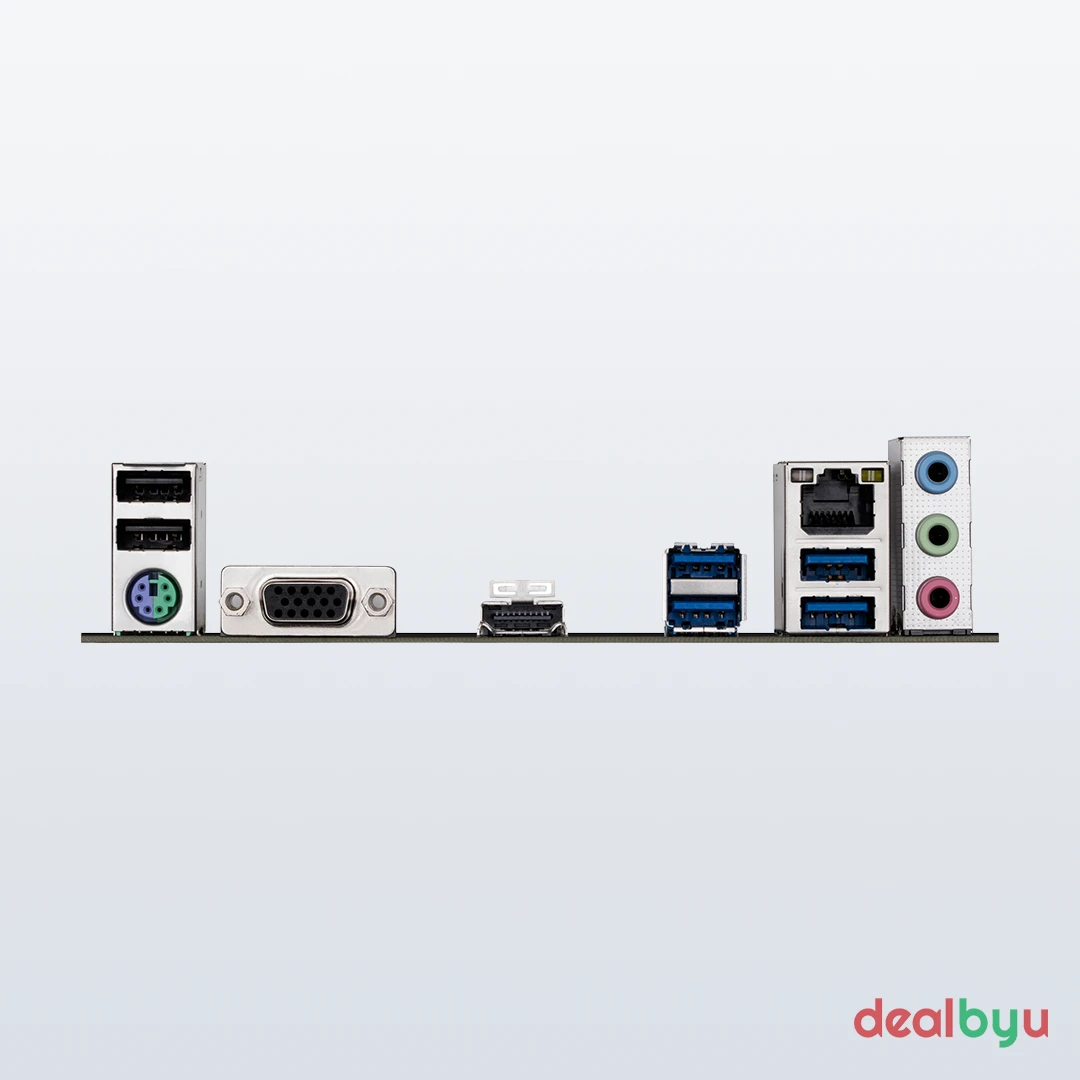

Rear I/O Ports & Count

1 x PS/2 Mouse/Keyboard port
1 x D-Sub (VGA) port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 LAN port
3 x Audio jacks (Line In, Line Out, Mic In)

Internal Front I/O Headers

1 x USB 3.2 Gen 1 header (supports 2 additional front USB ports)
2 x USB 2.0/1.1 headers (supports 4 additional front USB ports)
1 x Front Panel Audio header
1 x System Panel header
